Ribbon in Excel Explained: Tabs, Groups & Customization

Understanding Ribbon in Excel

The Ribbon in Excel is a user-friendly toolbar located at the top of Excel. It is designed to help users quickly find and use commands for creating and managing worksheets. The Ribbon contains all the commands, tools, and features that are organized into tabs. In this tutorial, you’ll learn how to navigate and customize the Ribbon in Excel and see why it is essential for both beginners and advanced users aiming to work more efficiently.

Importance of Ribbon:

• It groups related tools together (e.g., formatting, formulas, data tools)
• It makes features easier to find and use.

Tabs in Ribbon

The Ribbon in Excel is divided into Tabs, and each tab is further divided into groups, with related tools. Below are the tabs in the Ribbon.

1. Main tabs in the Excel Ribbon are:

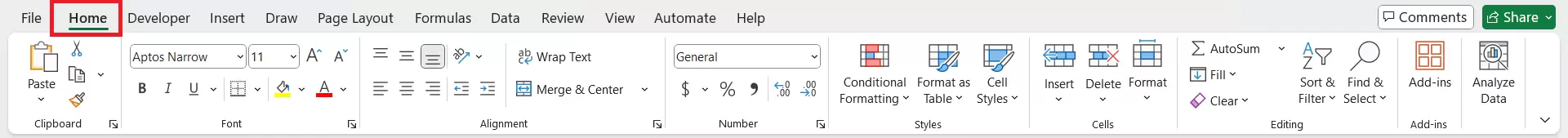

Home:

• The Hometab has tools for formatting, editing, clipboard actions, and Basic editing like Find & Replace, Clear.

Developer:

• This tab is for advanced users. It gives access to macros, writing VBA code, creating XML maps, and more.

Insert:

• It has the tools to insert Charts, Tables, PivotTables, Pictures, Shapes, etc. in the worksheet.

Draw:

• It has tools like pens, highlighters, and shapes, which are more useful on touchscreens or tablets.

Page Layout:

• It helps in changing worksheet appearance and has options like changing Margins, orientation, Print area, themes & colors, and Gridlines and headings.

Formulas:

• It gives quick access to calculation settings and helps in performing calculations without typing a formula.

Data:

• It has the tools to clean and analyze the data, such as sorting & filtering, Remove Duplicates, Data Validation, etc.

Review:

• It helps in spelling check, tracking changes, adding comments, protecting worksheets or workbooks, and collaborating with teammates.

View:

• It has the tools to adjust the Worksheet’s look.

Automate:

• It offers tools to automate repetitive tasks with the help of Scripts.

Help:

• It guides you when stuck by offering learning resources, connecting to Microsoft support, etc.

2. Groups

• Each tab is divided into groups with similar commands.
• For example, the Home tab has a Clipboardgroup which has the option to Cut, Copy, and Paste.

Font

• Then we have the Fontgroup, which allows you to format text to Bold, Italic, or Font Color.

Alignment

• The Alignment group changes the text alignment to Left, Center, or Wrap Text.

3. Command Buttons:

• These are the actual buttons you can click on, for example:
• Bold (B), Insert Table, Sort A to Z, etc.

4. Dialog Box Launchers

• These are tiny diagonal arrows in some groups that, when clicked, open advanced options.

5. Contextual Tabs

Contextual Tabs appear only when you’re working with certain items, such as Charts, Tables, Pivot Tables, Smart Art, etc.

Chart Design

• Charts Tools → Chart Design. Clicking on the chart makes the Chart Design tab appear.

Table Design

• Tables → Table Design. If data is formatted as a table, the Table Design tab automatically appears when you click on the table in the Excel Worksheet.

SmartArt Design

• SmartArt → SmartArt Design. Click on SmartArt to make the SmartArt Design tab appear.

PivotTable Analyze

• PivotTable → PivotTable Analyze. Clicking on Pivot Table shows the PivotTable Analyze tab in the Excel Ribbon.

6. Quick Access Toolbar

• It is located above the Ribbon on the top-left, it allows you to pin your favorite commands like Save, Undo, Redo, New, Open, Save etc.

7. Ribbon Display Options

Ribbon Display Options control how the Ribbon appears. It is the tiny icon on the top-right and is used for:

• To hide the Ribbon
• Show Tabs
• Auto-hide Ribbon
• Show Tabs and Commands

8. Customizing the Ribbon

The Excel Ribbon can be customized to personalize the Excel interface. By customizing the Ribbon, you can:

• Reorder or hide the tabs
• Add your own custom tab or
• Can add macros to the Ribbon buttons

To Customize the Ribbon go to File > Options > Customize Ribbon

• From here, you can click on any command on the left and
• Then click on add to add it to the ribbon.
• Click OK in the bottom right to save changes.

Summary

• The Ribbon is the toolbar that runs across the top of Excel. It contains all the commands, tools, and features that are organized into tabs.
• A Ribbon has the following key elements:
  • Tabs: Home, Developer, Insert, Draw, Page Layout, Formulas, Data, Review, View, Automate, Help
  • Groups: Each tab is divided into groups, like the Clipboard group, which has the option to Cut, Copy, and Paste.
  • Command Buttons: These are the actual buttons you can click on (e.g., Bold, Sort, Insert Table).
  • Dialog Box Launchers: These are tiny diagonal arrows in some groups that, when clicked, open advanced options.
  • Contextual Tabs: These appear only when you’re working with certain items.
  • Quick Access Toolbar: It is located above the Ribbon on the top-left, and it allows you to pin your favorite commands like Save, Undo, Redo, New, Open, etc.
  • Ribbon Display Options: The Ribbon Display Options control how the Ribbon appears.
  • Customizing the Ribbon: The Ribbon can be customized to personalize the Excel interface.
